Taidacent 13.56MHz ISO14443 M1/S50/Mifare/FM1208/NTAG/NFC IC Card/CPU Card Reader/RFID Card Issuer USB Free Drive Supports Secondary Development (15693 Reader)
4.8 (132 items)
Limited Time Sale$25.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208640613 | Release Date | 2026/03/22 | List Price | $17.20 | Model Number | 208640613 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Interface: USB HID Working frequency: 13.56MHz RF standard: ISO14443A Support card type: Fudan: FM11RF08, FM11RF32, FM1208, FM1216, FM12CD32 NXP: MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), Ultralight, Ultralight C, MIFARE DESFire, MIFARE ProX, NTAG203, NTAG210, NTAG212, NTAG213, NTAG215, NTAG216 Other compatible cards Sensing distance: 100mm (Mifare S50 typical distance, depending on the structure and size of the card antenna) SDK system compatibility: Windows 2000/XP/Vista/2008/7/8/10 etc. Supported development languages: VC, C#, Java, easy language, BC, DELPHI, PB, VB, VB.NET, etc. Display: Red and green dual color LED Buzzer: Yes Power supply: USB power supply, DC5V Working current: 120mA Working temperature: -40℃ ～ 85℃ Dimensions: 70mm*105mm*12mm (±0.5) Weight: about 50g Color: black
- Includes Windows, Linux, Android SDK
- Support Web page development, Java 32-bit, Java 64-bit, C#, Delphi
- This high-frequency reader can read and write IC cards and CPU cards that conform to the ISO14443 TYPE A standard protocol. The USB-HID interface is used to connect and communicate with the PC, no driver is required, and it is easy to use.

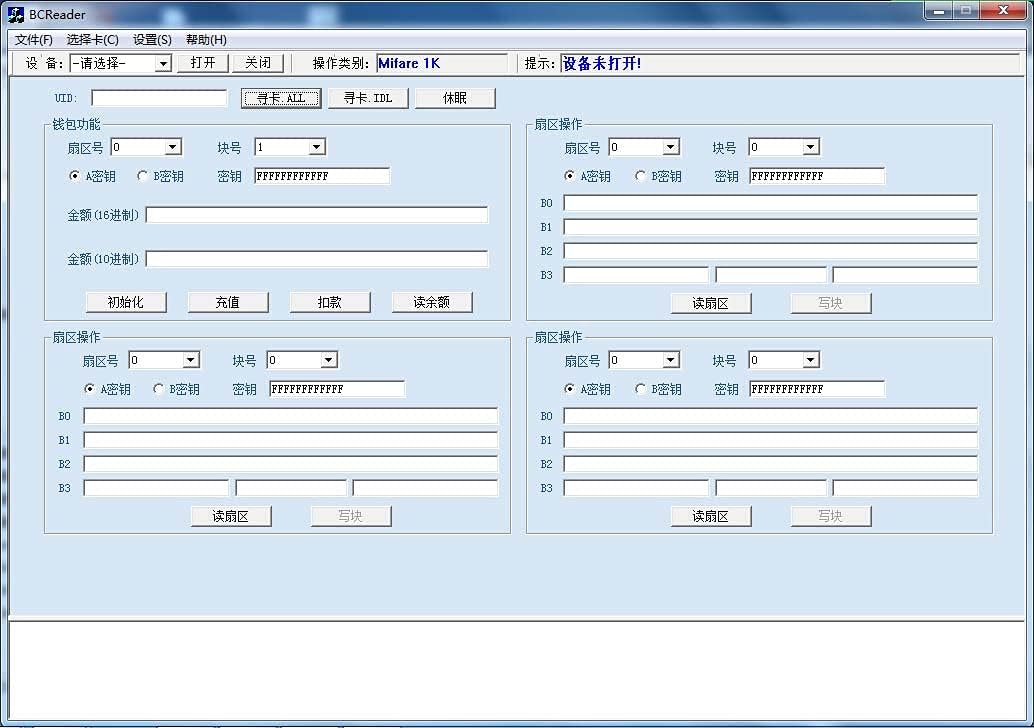

- Provide a friendly DEMO demo software. The product supports secondary development. The communication protocol and ISO14443A card reading and writing protocol have been encapsulated into simple DLL interface functions, and the card reading and writing operations can be realized by calling these functions. Provide examples of secondary development source code.
- Application areas: All-in-one card, access control, time and attendance, consumer management system terminal, e-commerce.
| Item Weight | 0.8 ounces |
|---|---|
| Manufacturer | Taida |
| Item model number | ZC-cardreader-210708 |
| Package Dimensions | 7 x 5 x 0.2 inches |
