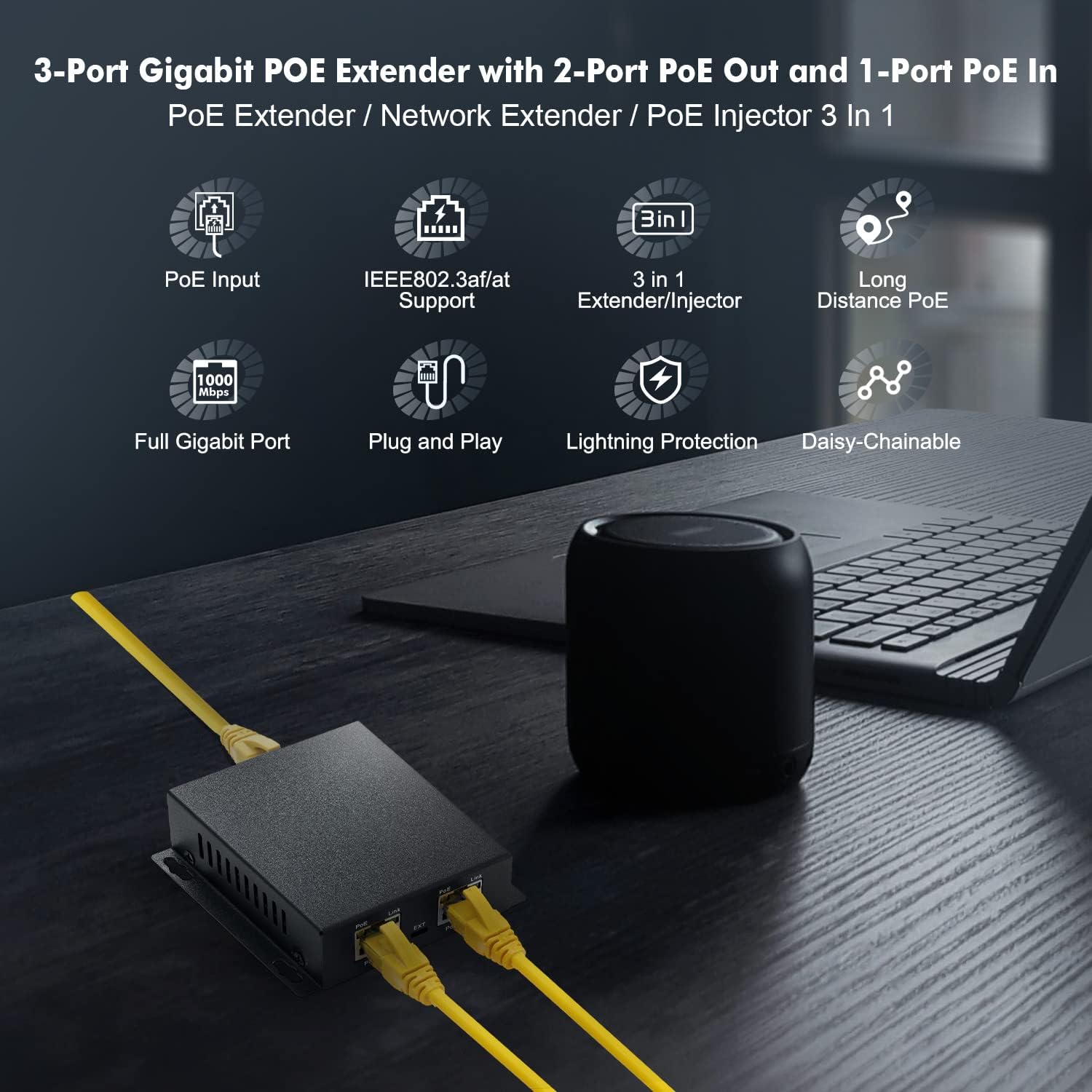

Gigabit PoE Extender Passthrough Switch, 1 PoE in 2 PoE Out, IEEE802.3af/at/bt PoE Powered Max 60W, Hi-PoE 90W, 10/100/1000Mbps, Metal Small Wall Mount PoE Extender/Injector/Network Extender

Gigabit PoE Extender Passthrough Switch, 1 PoE in 2 PoE Out, IEEE802.3af/at/bt PoE Powered Max 60W, Hi-PoE 90W, 10/100/1000Mbps, Metal Small Wall Mount PoE Extender/Injector/Network Extender

• 【Gigabit PoE Passthrough】Include 1 PoE In 2 PoE Out Ports, 10/100/1000Mbps rate self-adaption. Powered by PoE network, no AC power supply required.

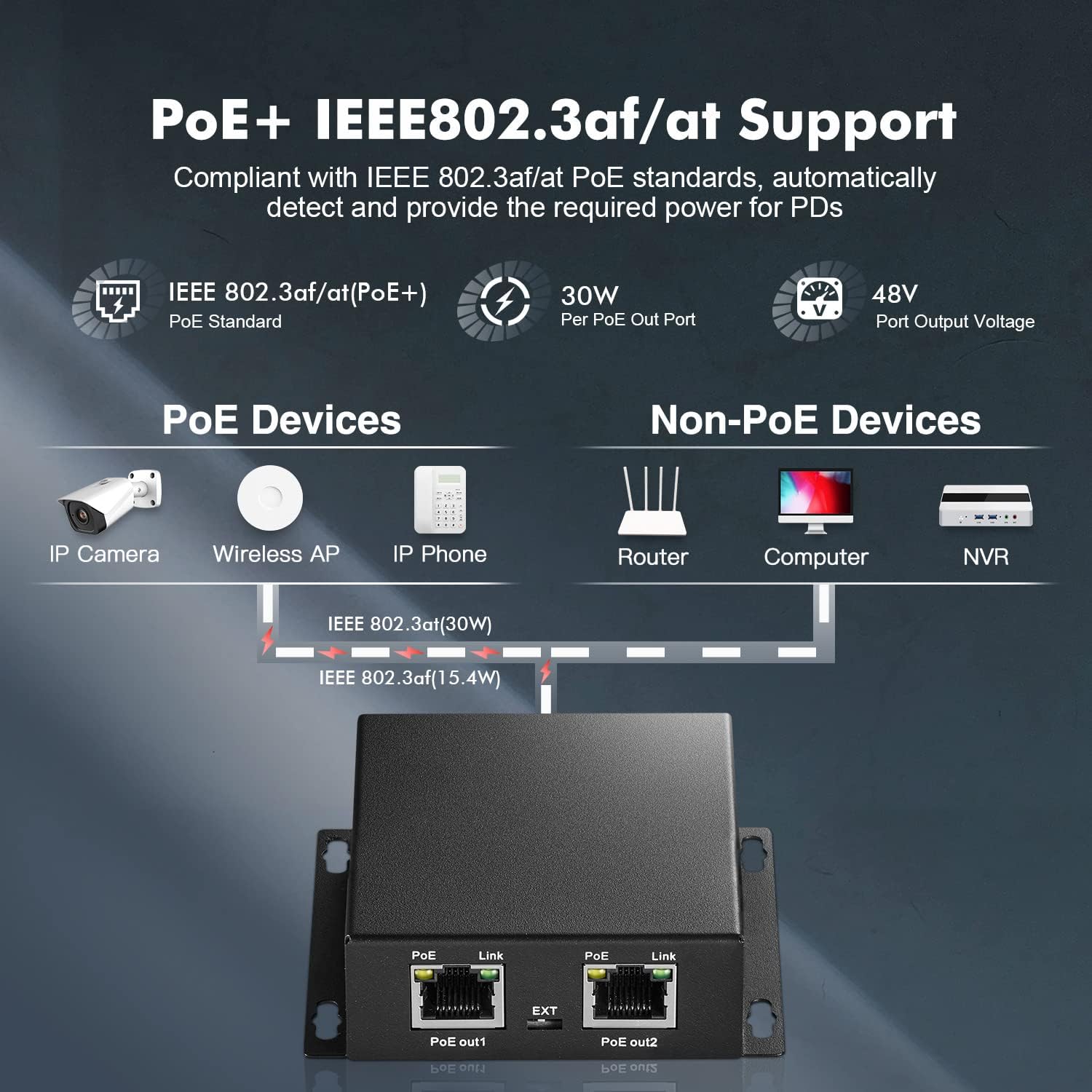

• 【IEEE 802.3 af/at/bt】Support standard PoE, IEEE 802.3 af 15.4W, IEEE 802.3 at 30W, IEEE 802.3 bt 60W, Hi-PoE 90W. PoE Voltage 44-57 Vdc. PoE pin: 1/2 (+), 3/6(-), 4/5(+), 7/8(-); **Not support passive 24V PoE**

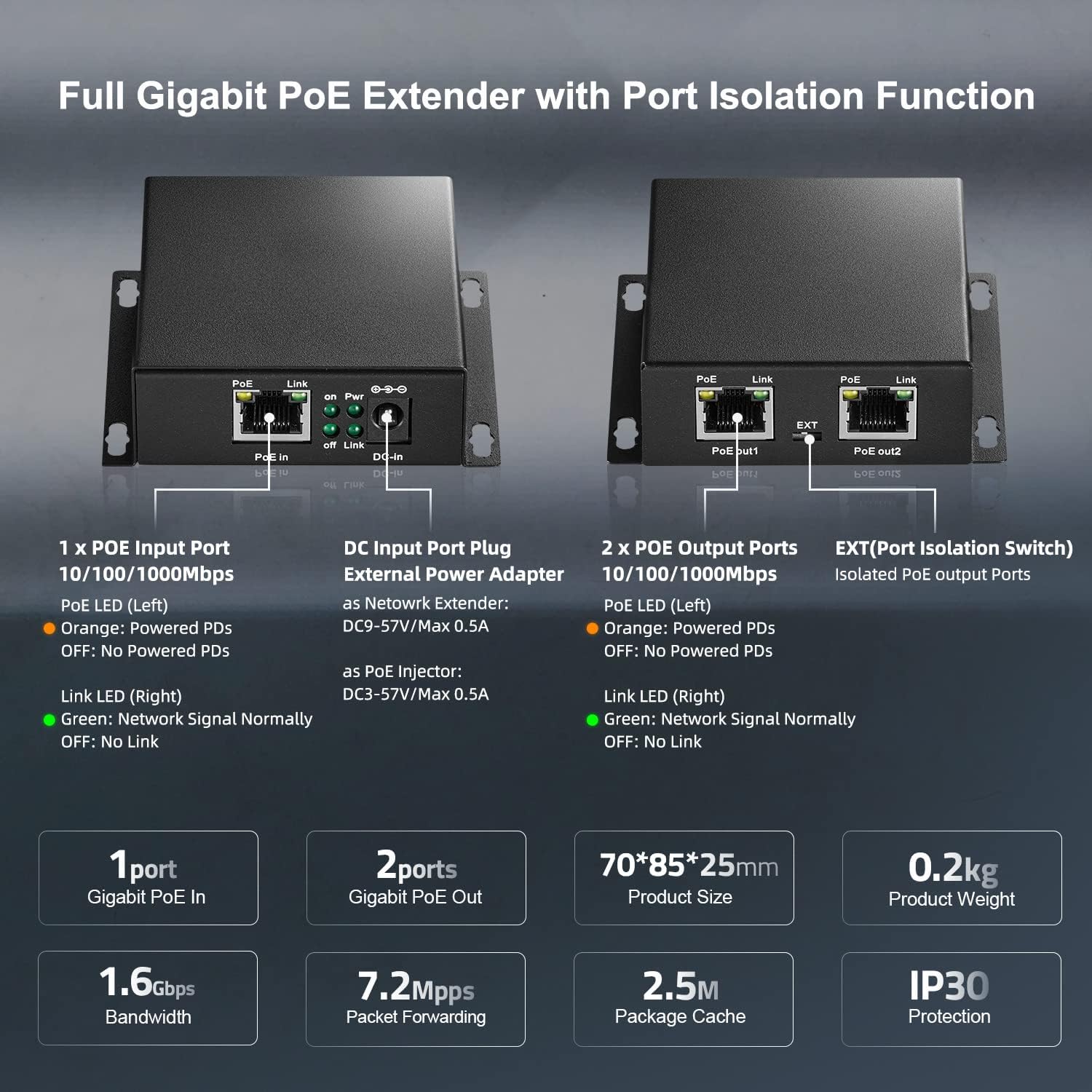

• 【Unmanaged Plug & Play】 Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration.

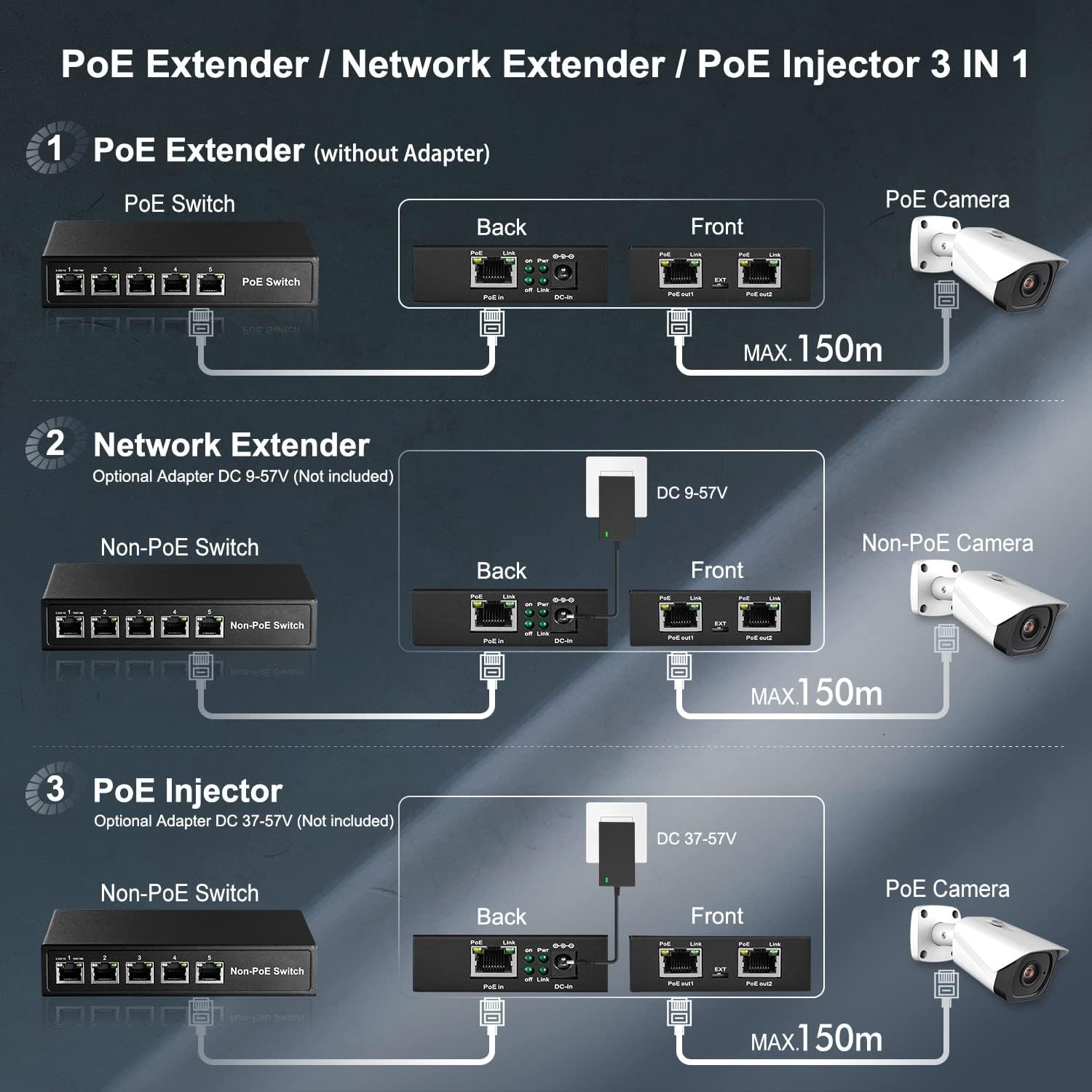

• 【Three in One】Powered by PoE or DC(not inculded). When Input DC 12V 0.5A, as a network extender. When Input DC 37-57V 0.5A, as a poe switch/injector. So it has Three in One functions: POE Extender, network Extender and POE switch according to different power supplies. **No power supply is include, default as POE Extender power by PoE**

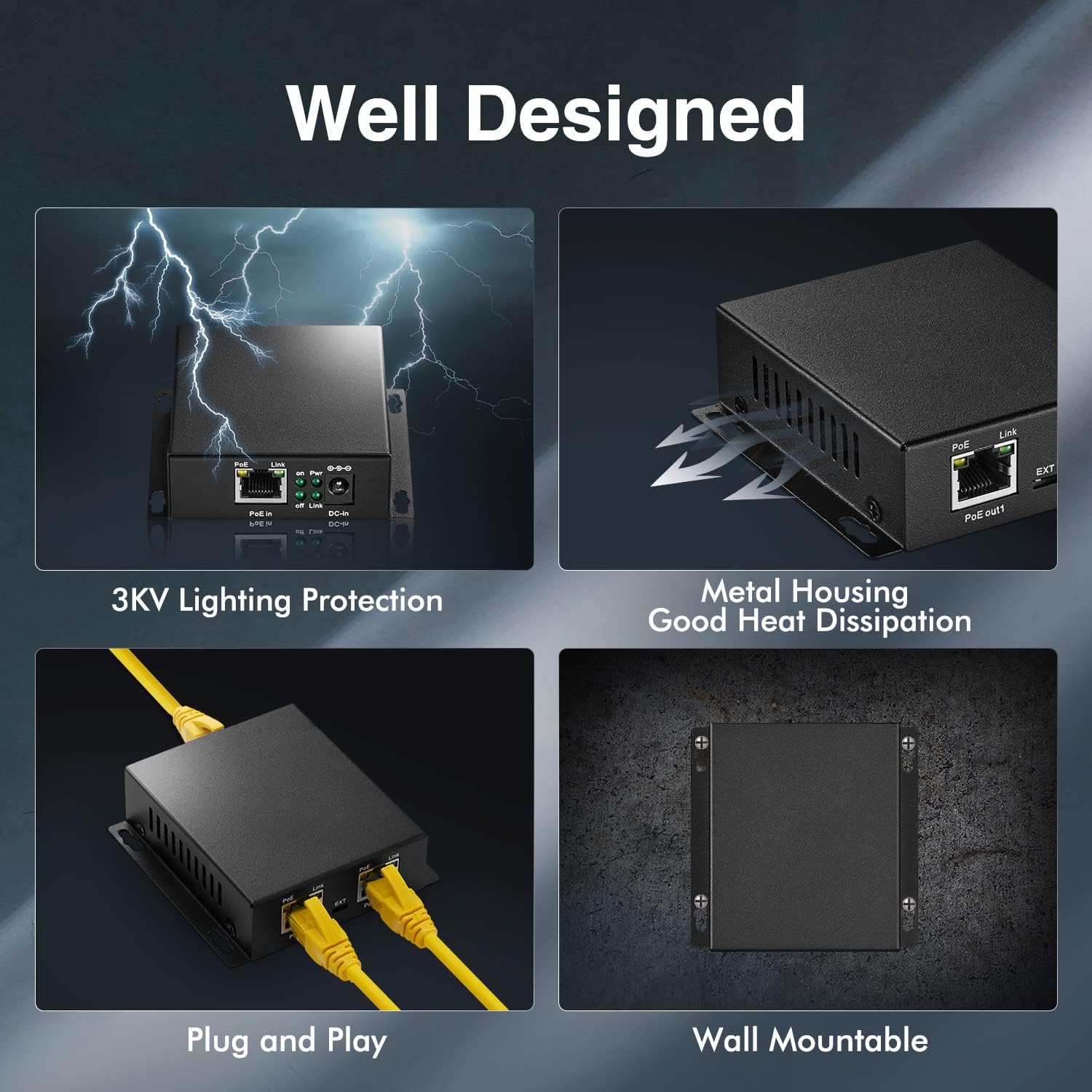

• 【Easy Install】 Metal case, LED indicator, fanless, with mount ear support wall mount, smaller size save space, suitable for many positions
