3PCS Nema 23 Stepper Motor 2000steps/rev 4.2A High Torque 57 Bipolar Motors 2300mNm/325.70oz.in 76MM 1.8 Deg 2 Phase 4 Lead for 3D Printer CNC Milling Engraving Machine Medical Equipment
4.1 (50 items)
Limited Time Sale$42.66 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208572672 | Release Date | 2026/03/22 | List Price | $28.44 | Model Number | 208572672 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

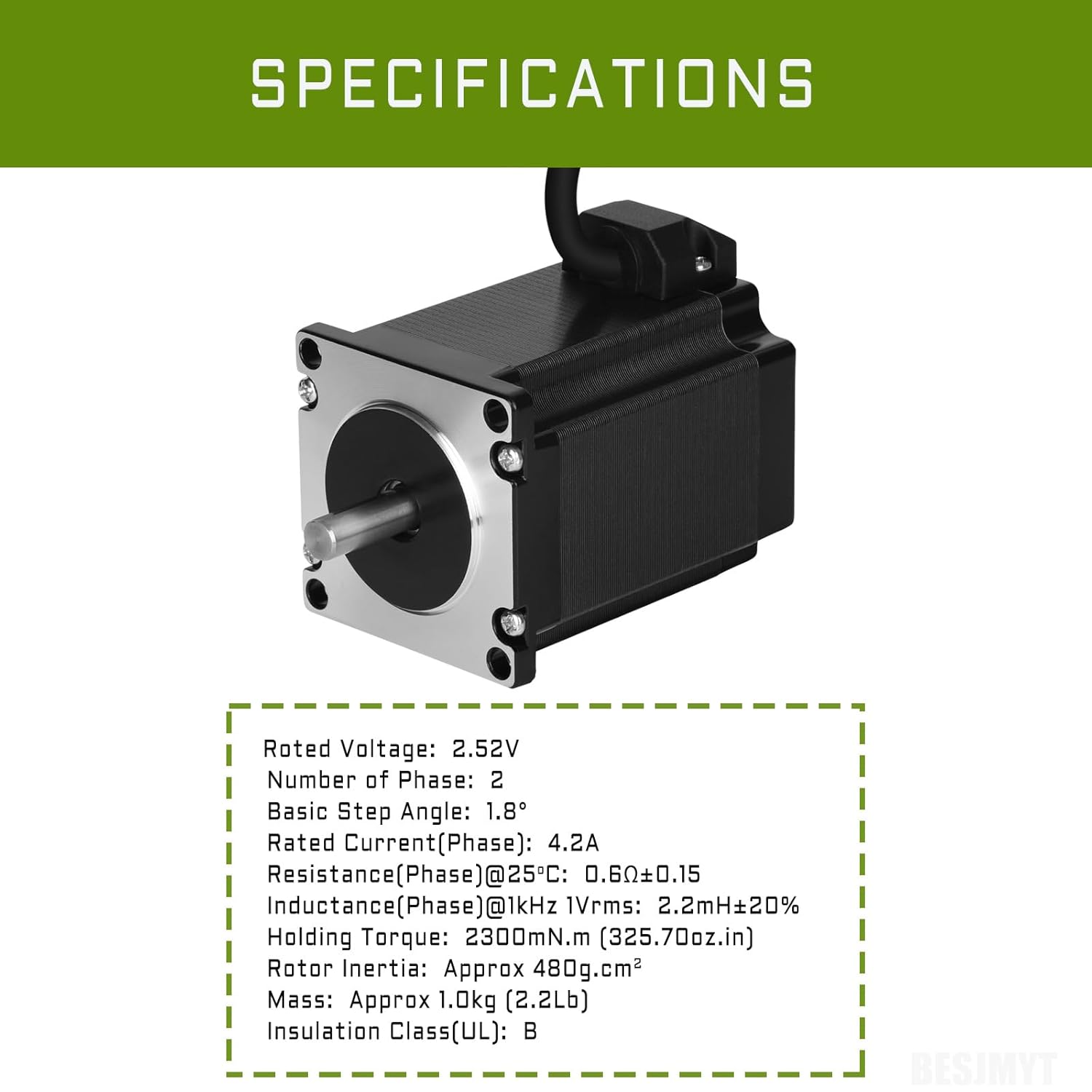

- [Arguments]:Holding Togque: 2300mNm (325.70oz.in); Rotor Inertia: 480g.cm²; Body Length: 76MM / 3.0inch; Step Angle: 1.8 degree; Phase: 2; Rated Current: 4.2A; Phase Resistance: 0.6Ω; Phase Inductance: 2.2mH; Weight: 1kg.
- [Proportion]: 57x57x76MM / 2.25x2.25x3.0inch, Positional Accuracy(no-load): ±0.09°Max, 2 phase, 4 wires: Black (A), Green (C), Red (B), Blue (D), Shaft Diameter: Φ 8mm ( D Shaft Φ 7.5mm ), Shaft Length: 21mm.
- [Low Noise]: Advanced design and manufacturing processes ensure that NEMA 23 stepper motors operate with minimal noise, contributing to a peaceful and quiet working environment.
- [Multi Applications]: Employed for controlling, positioning, adjusting, and executing various intricate motion tasks, facilitating a wide array of automation and intelligent applications.
- [Including]:Comprising 3PCS of 76MM Nema 23 stepper motors and three 50cm cables. Please feel free to reach out to our customer service team if you have any concerns or questions during the purchasing process. We’re here to help.
| Manufacturer | BESJMYT |
|---|---|
| Item model number | Nema23 |
| Product Dimensions | 2.24 x 2.24 x 2.99 inches; 2.2 Pounds |
